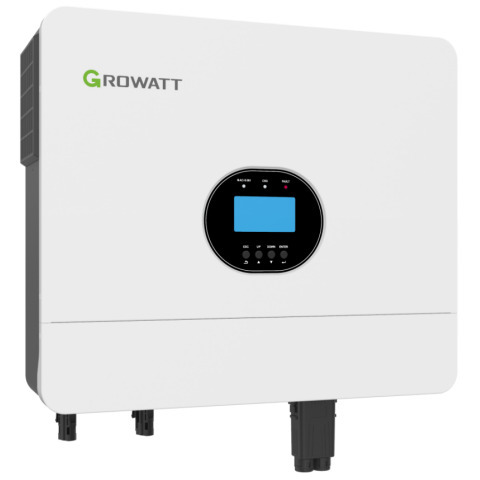

Growatt 12kW Single Phase Off Grid Hybrid Solar Inverter
The Growatt 12kW Single Phase Solar Hybrid Inverter is a cutting-edge solution for homeowners and small businesses looking to maximize solar energy efficiency and reduce electricity costs. Designed to work seamlessly with both on-grid and off-grid solar systems, this high-capacity inverter offers unmatched performance, reliability, and durability. Whether you are installing a new solar system or upgrading an existing setup, the Growatt 12kW inverter is engineered to meet all your energy needs efficiently.
| Growatt SPE 12000ES Hybrid Inverter – Full Specifications |
| Model |
Growatt SPE 12000ES |
| Rated Output Power |
12,000W (12kW) |
| Maximum PV Input Power |
15,000W |
| Maximum PV Input Voltage |
550VDC |
| MPPT Voltage Range |
60V – 480V |
| Number of MPPT Trackers |
2 |
| AC Output Voltage |
230V ± 5% |
| AC Output Frequency |
50Hz / 60Hz |
| AC Output Current |
52.2A |
| Battery Voltage |
48V |
| Battery Compatibility |
Lithium / Lead-acid / GEL |
| Maximum Battery Charge/Discharge Current |
190A – 280A |
| Efficiency |
Up to 97.5% |
| Operating Temperature Range |
-25°C to +60°C |
| Protection Degree |
IP20 |
| Parallel Capability |
Up to 9 units (108kW) |
| Communication |
CAN / RS485 / WiFi / 4G |
| Dimensions (W x H x D) |
550mm x 465mm x 150mm |
| Weight |
Approximately 22kg |
