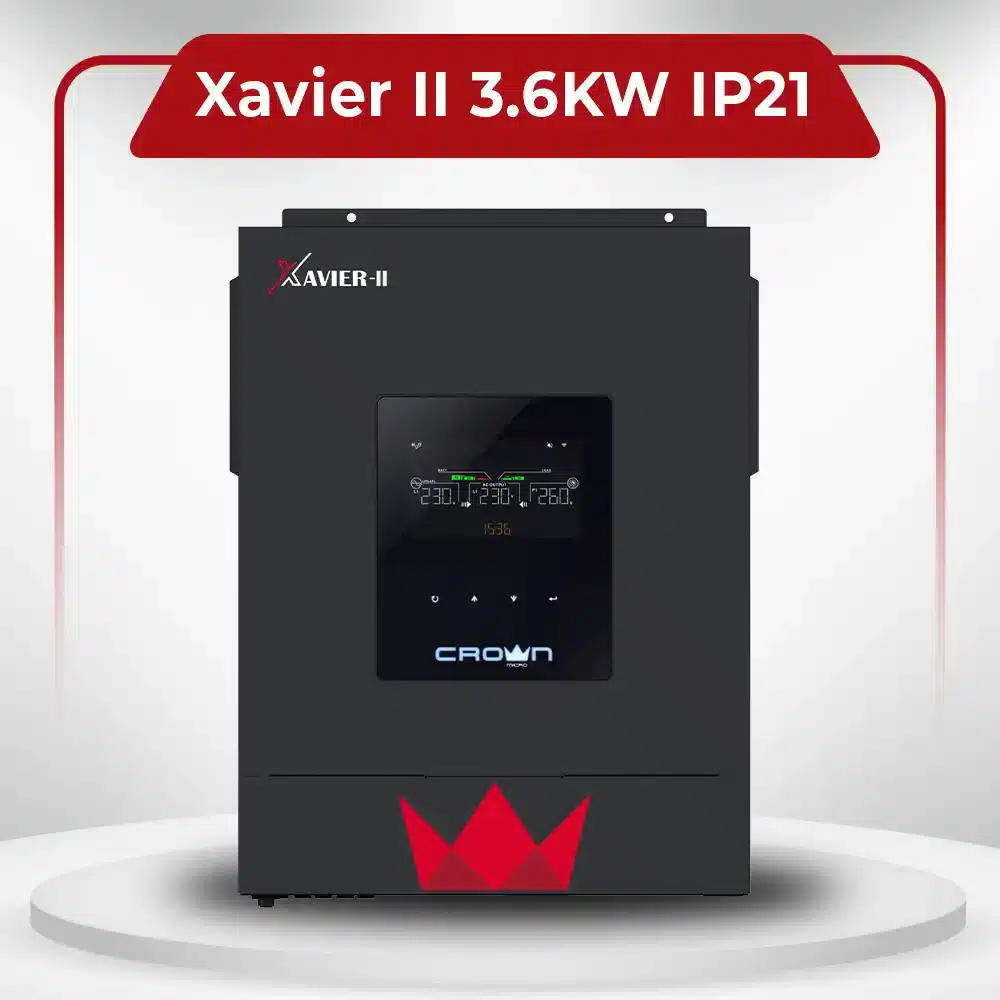

CrownMicro Xavier XAVIER-II-3.6KW PV-4500 – Overview
CrownMicro Xavier XAVIER-II-3.6KW PV-4500 is a 3.6kW pure sine wave, MPPT-based solar inverter designed for dependable home and SME power. It pairs a wide PV window (60–450VDC, 500V OCV) with a high-current, built-in 120A MPPT charger and selectable AC input ranges for PCs or household appliances. The inverter supports 24V Lithium or Lead-acid batteries and can also run without a battery when required. With PF=1, 93% peak efficiency and a fast 10ms transfer time (20ms for home appliances), it delivers stable, clean power to sensitive loads.
Key Benefits
- All-in-one hub: inverter + 120A MPPT + AC charger with clean, pure-sine output.
- Dual output: smart load management lets you split essential vs. non-essential circuits.
- Battery-independent design: operate from PV/AC today; add a 24V battery later for backup and time-of-use shifting.
- Wide PV window: 60–450VDC supports long strings and earlier start-up in low light.
- User-friendly: color display/touch UI, anti-dust design, USB/RS-232 (optional USB/dry contact), Wi-Fi ready.
For a complete system, pair CrownMicro Xavier XAVIER-II-3.6KW PV-4500 with quality solar panels and a right-sized 24V battery bank. Configure for self-consumption, backup power or shop/office loads using the integrated communications and dual-output logic.
Technical Specifications
| Category | Specification |
|---|---|
| Model Name | XAVIER-II-3.6KW (PV-4500) |
| Rated Power | 3600VA / 3600W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170–280VAC (for PCs) / 90–280VAC (for home appliances) |
| Frequency Range | 50Hz / 60Hz (auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Battery Mode) | 230VAC ±5% |
| Surge Power | 7200VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (PCs), 20ms (home appliances) |
| Waveform | Pure sine wave |
| Dual Output | Yes |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Max PV Array Open-Circuit Voltage | 500VDC |
| Max PV Array Power | 4500W |
| Max PV Input Current | 27A |
| MPPT Range @ Operating Voltage | 60–450VDC |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 100A |
| Max Charge Current | 120A |
| GENERAL SPECIFICATIONS | |
| Dimensions (D×W×H) | 107 × 322.6 × 520.3 mm (per datasheet) |
| Net Weight | 9.5 kg |
| Communication Interface | USB / RS-232 (optional USB / dry contact) |
| OPERATING ENVIRONMENT | |
| Humidity | 5%–95% RH (non-condensing) |
| Operating Temperature | −10°C to +50°C |
| Storage Temperature | −15°C to +60°C |
For manufacturer details, see the official page: CrownMicro 3.6 kW Inverter
